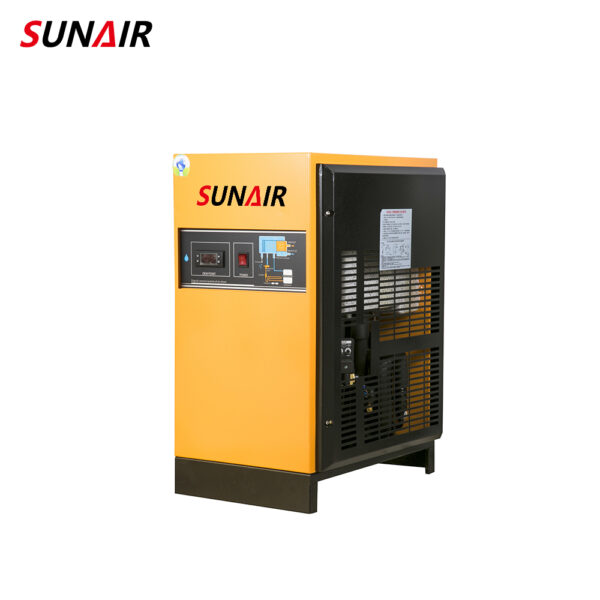

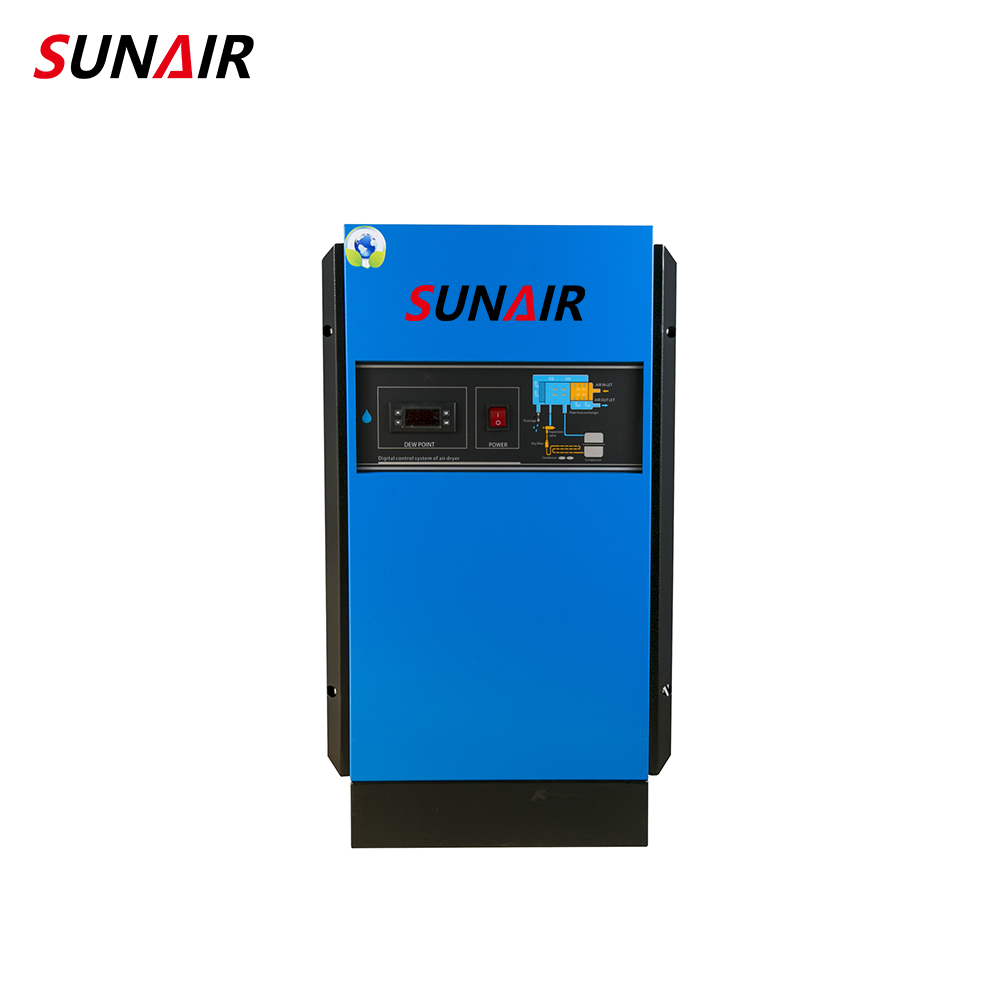

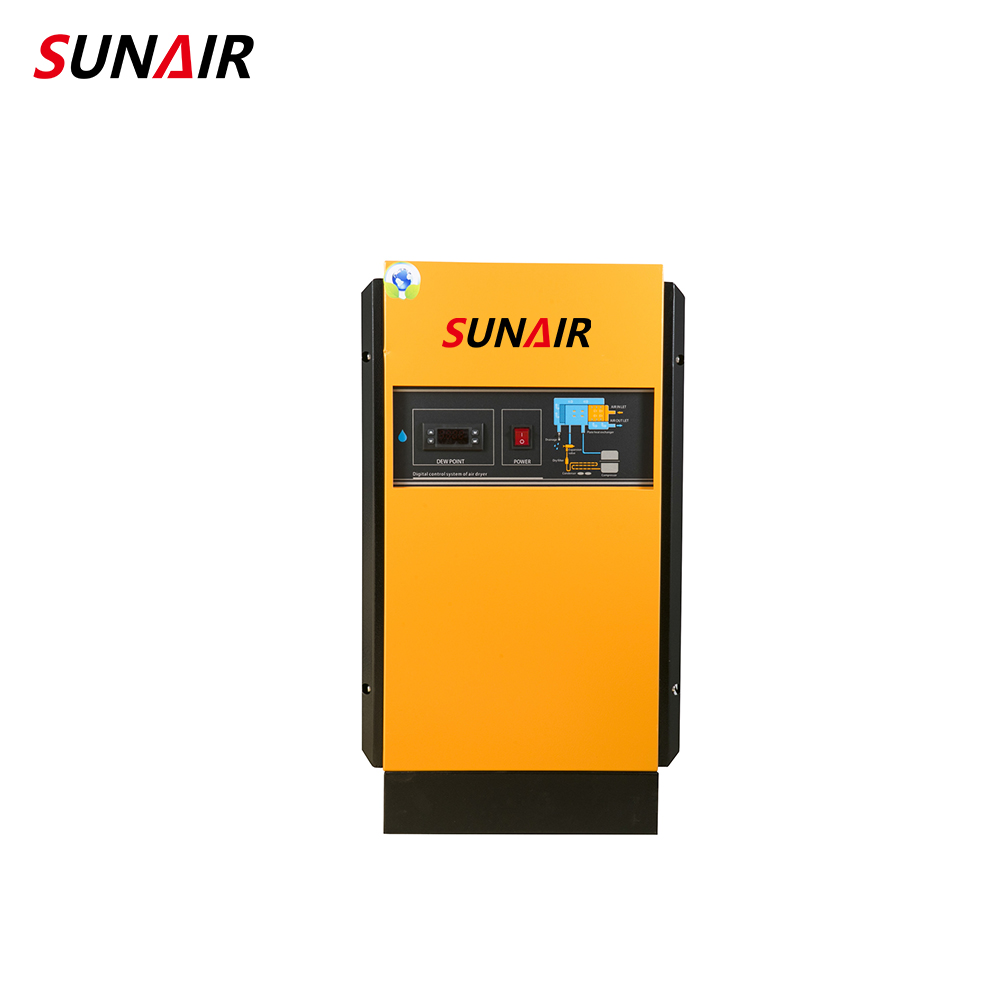

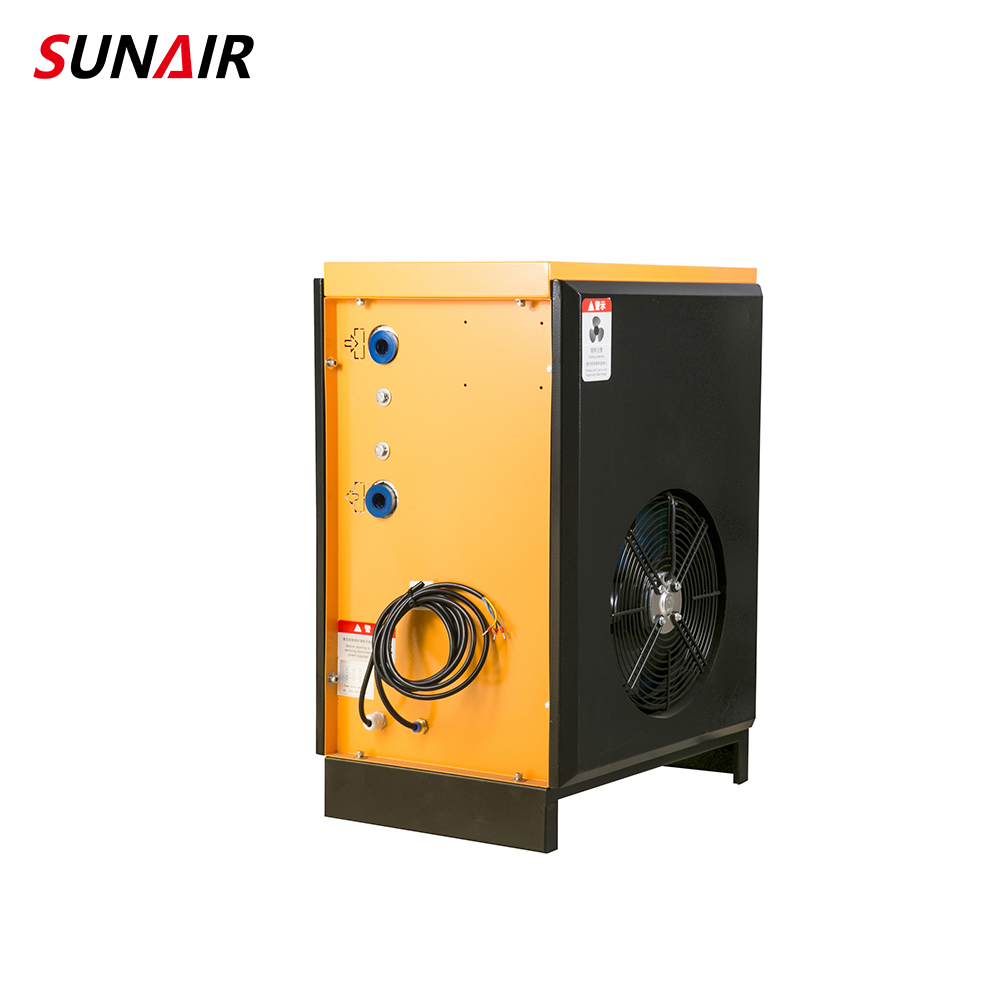

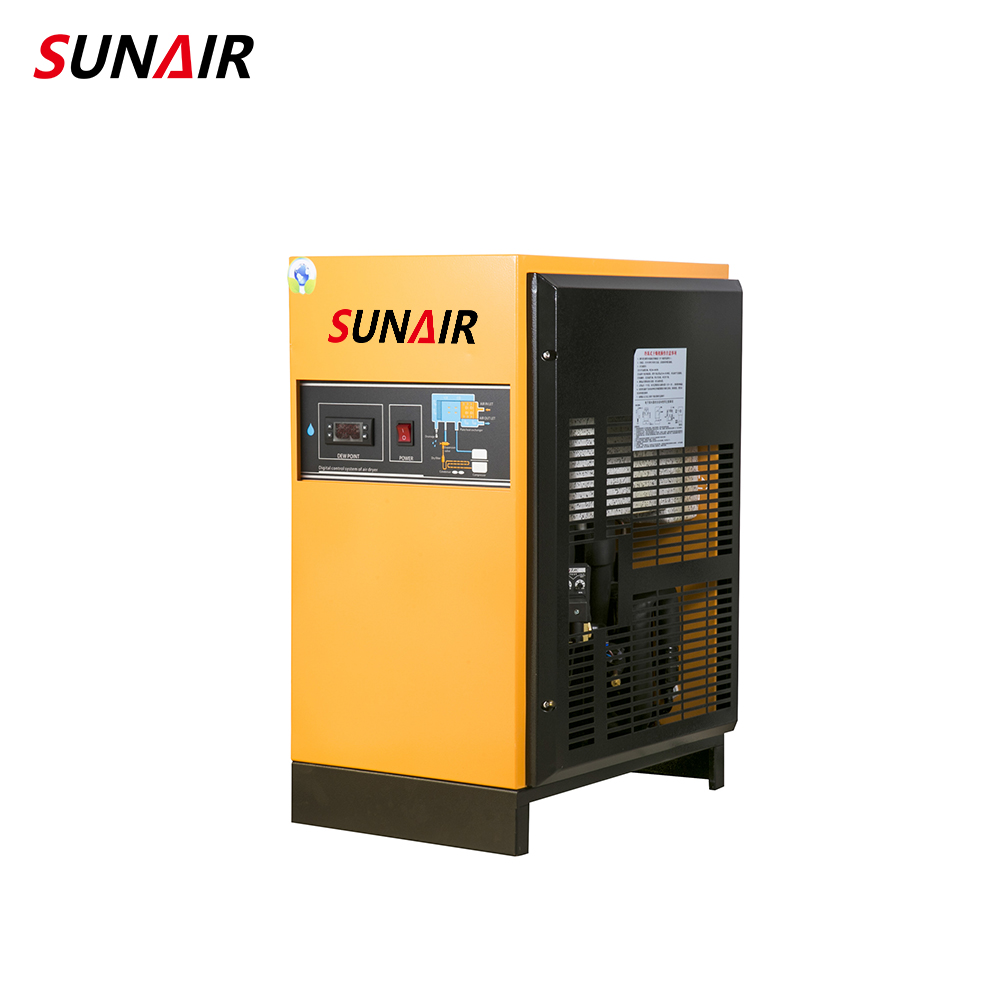

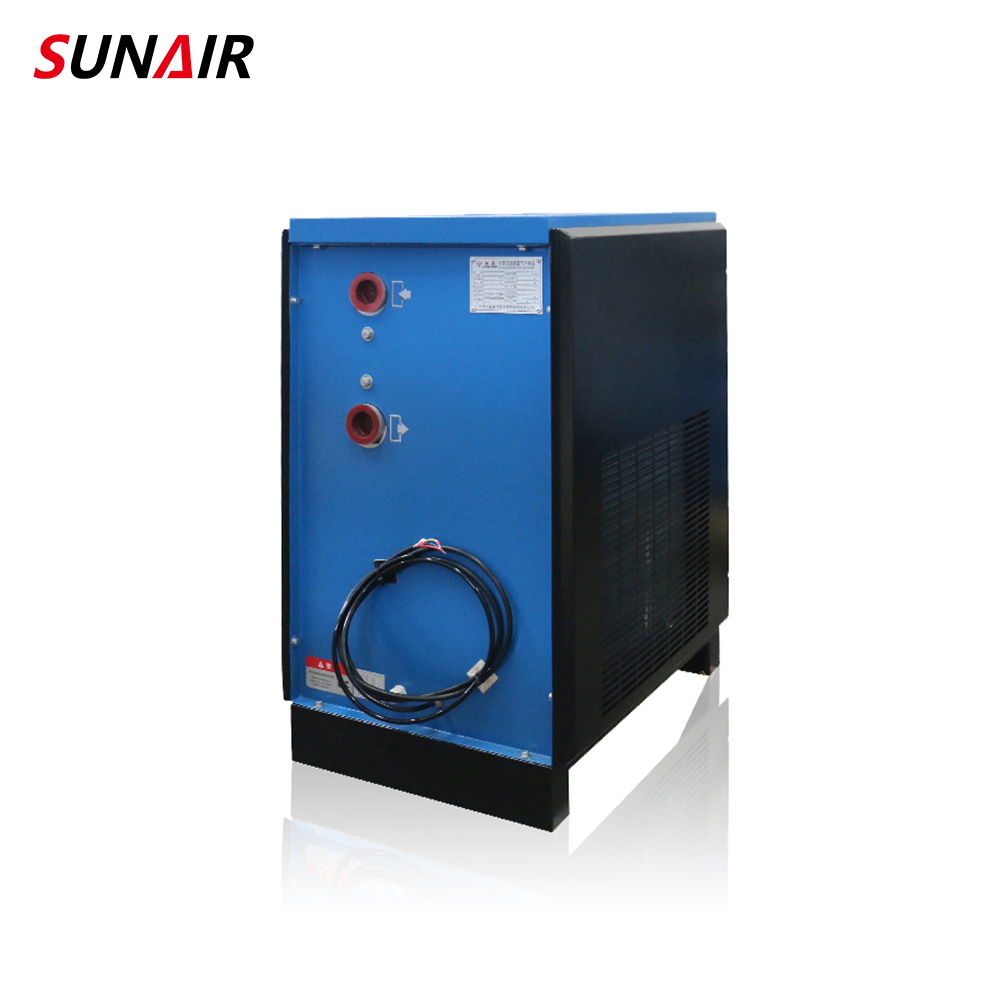

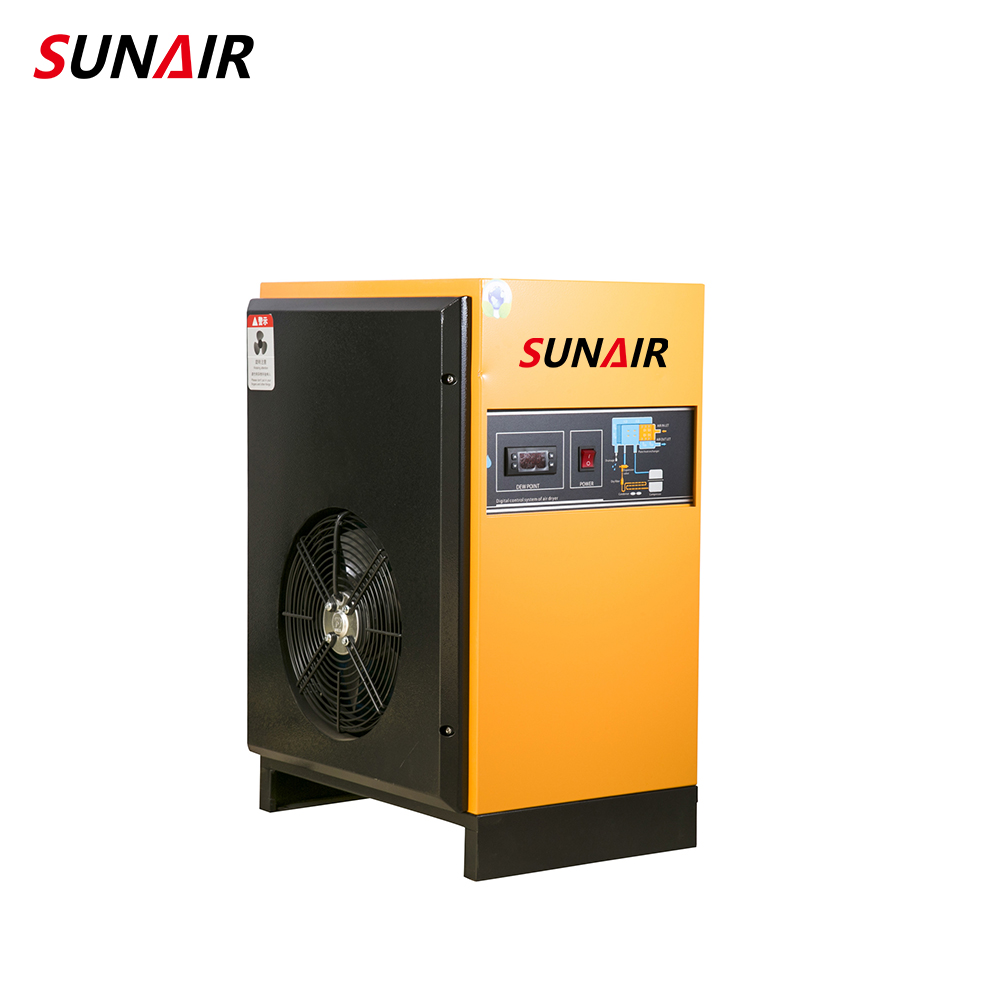

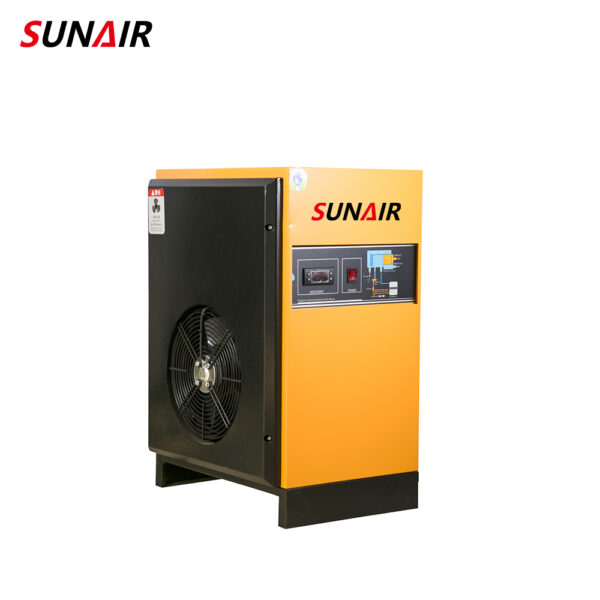

Normal Temperature 3.6m3/Min Air Compressor Dryer Air Dryer Refrigerated Freeze Drying Equipment TR-03

TR-03 8-16bar 220V/50Hz Air Dryer for Air Compressor

SKU: TR-03Categories: Air Dryer

Description

Advantages of Refrigerated Air Dryer:

Reliable Moisture Removal: Effectively removes bulk liquid water and water vapor from compressed air.
Protects Equipment: Prevents corrosion, pipe scaling, and damage to downstream tools/processes.
Improves Product Quality: Ensures dry air for sensitive applications (painting, pneumatic controls, instruments).
Lower Operating Costs: Significantly cheaper to run than desiccant dryers (no adsorbent replacement or high purge loss).
Simple Operation & Maintenance: Fully automatic operation with minimal routine maintenance required.
Achieves Standard PDP: Delivers a stable, consistent Pressure Dew Point (PDP) typically around +3°C/+37°F – sufficient for most industrial uses.
Energy Efficient: Uses refrigeration cycles, generally consuming less energy than heated desiccant dryers for equivalent moisture removal.

Model	TR01	TR02	TR03	TR06	TR08	TR10	TR12
Capacity	m3/min	1.2	2.4	3.6	6.5	8.5	10.5	13
Power supply		220V 1PH 50HZ/60HZ
Input power	kW	0.37	0.52	0.735	1.26	1.87	2.43	2.63
Air pipe connection		RC3/4″		RC1″	RC1-1/2″	RC2″
Evaporator type		Aluminum alloy plate
Refrigerant model		R134a		R410a
Display Anti-freezing protection		LED dew point display, LED alarm code display, operation status indication Constant pressure expansion valve & compressor automatic start /stop
Temperature control		Automatic control of condensing temperature / dew point temperature
High voltage protection		Temperature sensor		Temperature sensor&lnductive intelligent protection
Low voltage protection		Temperature sensor&lnductive intelligent protection
Weight	Kg	34	42	50	63	73	85	94
Dimension	L	480	520	640	700	770	770	800
	W	380	410	520	540	590	590	610
	H	665	725	850	950	990	990	1030
